Prepare your own bishop dress collar guide continued.........

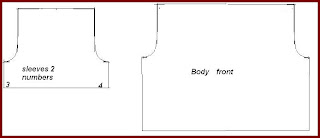

Sleeves

1 to5 =H-G. 5 to 2 = sleeve width =2½ to 3 times the curve J-J2
For distance H to G see    here    in figure 1
6 to 5 =distance H-J
3 to 6 = under sleeve length measured from arm pit to the required length
2 to 4 =1 to 6 +6 to 3. Shape the curve 6 -5 keeping armhole shape guide

Body front and back


Make four layer fold

7 to 11=H to G and 11 to 8 is 2½ times or 3 times the distance of the curve J –J’
11 to 12 =distance H-J
12 to 9 length of the dress from arm pit
Curve 12 to 11 is shaped using the armhole guide draft.
Open the fold and keep one layer for the front. Cut the other layer in the middle along the line 8 to 10.
Those two portions are right back and left back. While cutting the fabric an extra extension of 1¼” should be made at the opening (shaded portion) for button stands.


Photobucket
